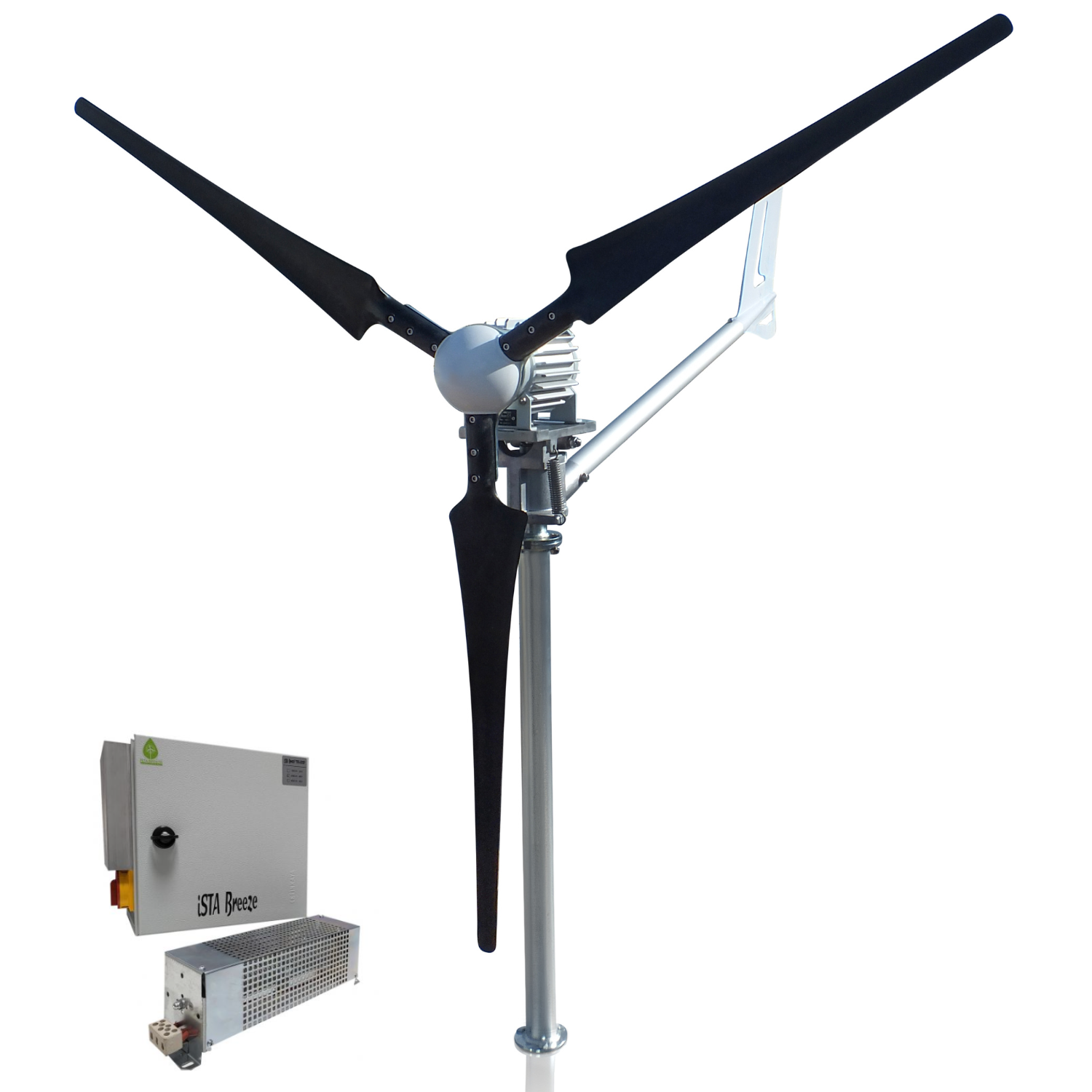

Die neu entwickelte IstaBreeze® WindSafe ist ein Windgenerator für den dauerhaften professionellen Einsatz, der auch unter extremen Bedingungen automatisch und unbeaufsichtigt zuverlässig Energie liefert.
Unsere WindSafe IstaBreeze® Windturbinenmodell hat ein revolutionäres Turbinenschutzsystem, der Rotor ist auf einer beweglichen Plattform abgestützt, die bei Sturm oder starkem Wind die gesamte Konstruktion um 90 Grad anhebt, wodurch die Repeller in Relation zum Wind modifiziert werden, dadurch wird der Frontalangriff reduziert und die Rotation verringert. Die Generator wird somit vor starken Winden geschützt. Diese robuste Konstruktion sorgt für eine lange Lebensdauer unserer Turbinen und wird zu einem einzigartigen System in der Kategorie der Mini-Windgeneratoren.
Die großzügige Dimensionierung der Generatorkomponenten und die Wärmeabfuhr durch die rillen im Aluminiumgehäuse des Generators sorgen für eine geringe thermische Belastung, wodurch auch bei hohen Umgebungstemperaturen eine lange Lebensdauer sichergestellt ist.

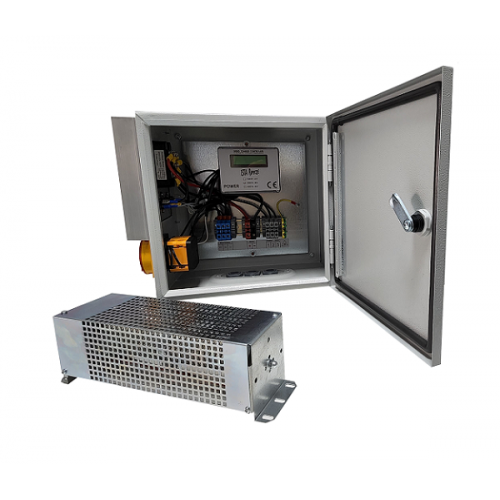

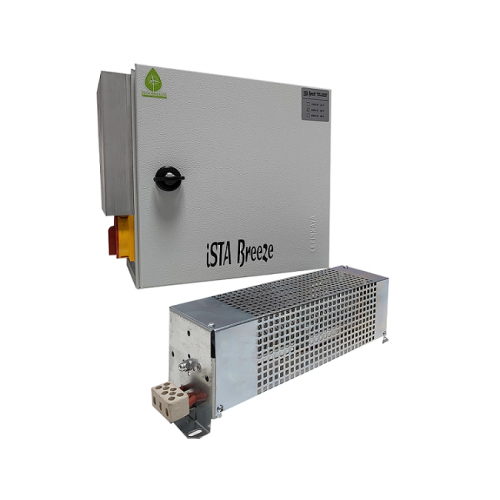

Details for 1500W Pro Wind Charge Controller | |
Battery Voltage Min | 21V |
Cable | 10mm (Battery) 6mm (Wind turbine and dumpload) 4mm (Ground) |
Charging Current Wind Amp | 60A |
Charging Voltage | 25,2V |
Cooling | External Aluminium Cooling Fins |
Display | Lcd with 3 displays Amper,Watt, Battery Voltage, Brake, Temperature |
Dump Load | 1.5kw braking resistor. The load resistor can deviate from the picture |
Integrated manual stop switch | Maintenance |
Nominal Battery Voltage | 24VDC |
Max Input power of Wind Turbine | 1.6kw |
Braking Function (Electromagnetic short-circuit | From 28.8V. If cooling temperature is reach 50°C or more, then automatic brake will be active. |
Operating Temperature | Normal: 20~+55°C/35~85%RH Industrial: 30~+55°C/35~85%RH |
Recommended Battery Min | Acid & Gel (It can be redesign according to lithium batteries) |
Details for 2000W Pro Wind Charge Controller | |
Battery Voltage Min | 42V |
Cable | 10mm (Battery) 6mm (Wind turbine and dumpload) 4mm (Ground) |
Charging Current Wind Amp | 40A |
Charging Voltage | 52.8V |
Cooling | External Aluminium Cooling Fins |
Display | Lcd with 3 displays Amper,Watt, Battery Voltage ,Brake, Temperature |
Dump Load | 2kw braking resistor. The load resistor can deviate from the picture |
Integrated manual stop switch | Maintenance |
Protection class | IP20 (Inside Area) |
Nominal Battery Voltage | 48VDC |
Max Input power of Wind Turbine | 2,2kw |
Braking Function (Electromagnetic short-circuit | From 58V. If cooling temperature is reach 50°C or more, then automatic brake will be active |
Operating temperature | Normal: 20~+55°C/35~85%RH Industrial: 30~+55°C/35~85%RH |
Temperature Compensation | -4mV°C/2V, -35°C-- +80°C, Accuracy: ±1°C |
Recommended Battery Min | Acid & Gel (It can be redesign according to lithium batteries) |
